Agent2Agent over Apache Kafka

Agent messages that survive the restart.

ka2a is a Go library and command-line tool for Agent2Agent (A2A) messages over Apache Kafka. It signs messages and stores observed delivery stages in SQLite. After a restart, your application can read those records and see which outcomes remain unknown.

Inspect those records in a Model Context Protocol (MCP) App. Follow one operation, review a saved recovery rehearsal or compare model predictions with recorded behavior.

Two agents exchange a sealed message through a shared log. Each side keeps its own record.
  • Pure GoNo cgo. The SQLite driver is pure Go.
  • Signed recordsEd25519 over topic, key, headers and value.
  • SQLite recoveryOutbox, receive journal and task state survive a crash.
  • A2A 1.0 typesSendMessage, GetTask, ListTasks and CancelTask.

MCP Apps · six read-only tools

Inspect delivery and recovery in an MCP App.

Your MCP host is the application where you use tools. A host with MCP Apps support also displays the interactive view.

Configure the host to launch ka2a mcp --state-dir DIR with an existing endpoint directory. The local MCP server reads that endpoint's records.

In the App, inspect operations, queued messages, dispatch, rejections, incidents and partition progress. The controls refresh, filter and page through those records.

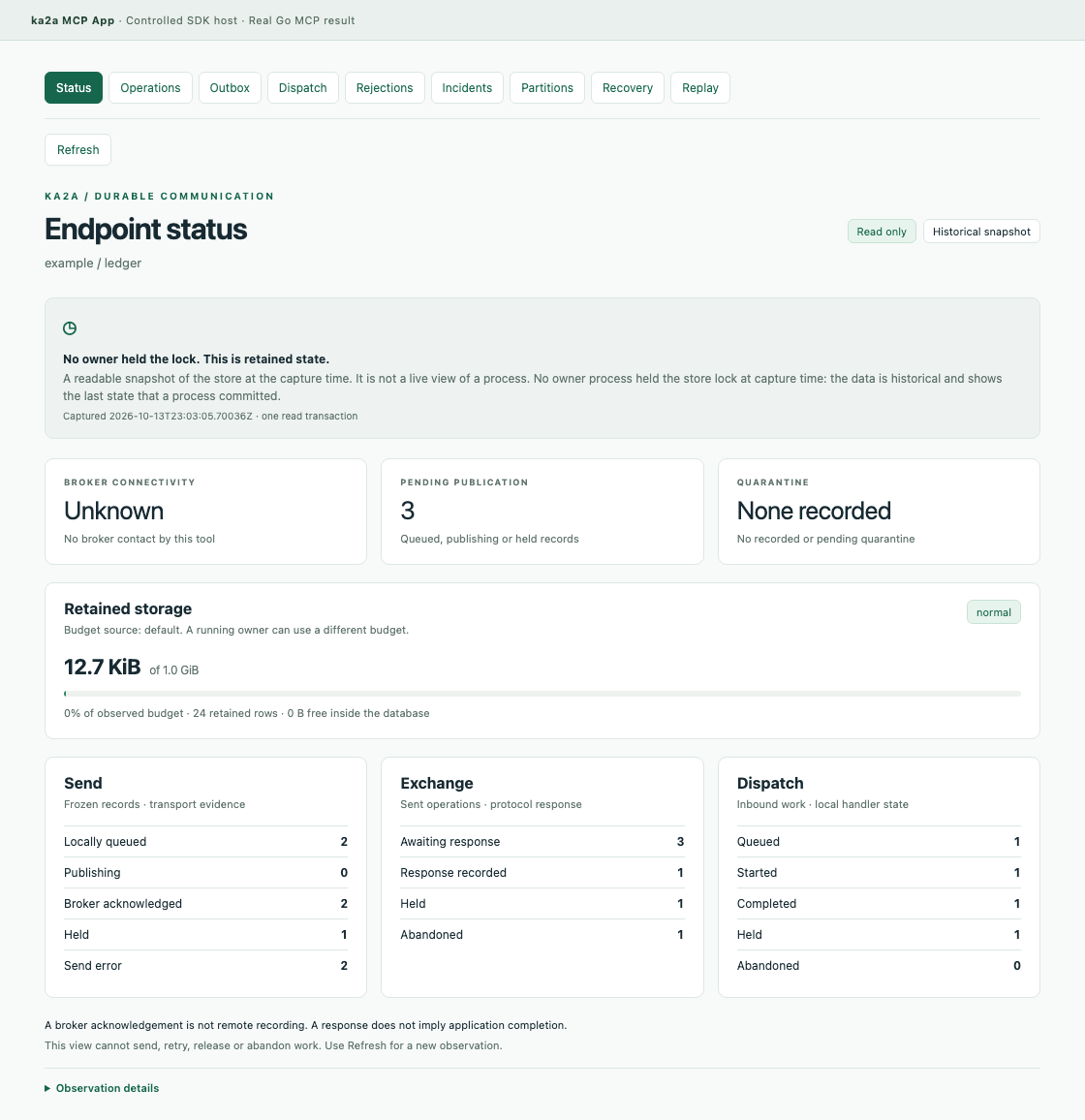

The ka2a MCP App shows endpoint example/ledger, three records pending publication and unknown broker connectivity. Navigation opens the operational sections, recovery and replay.
App 1 Synthetic demo data. Playwright capture in a local host built with the official MCP Apps SDK, not a third-party client. This retained snapshot records no owner lock. Broker connectivity remains unknown. Select the image for the full-size capture.

Read without changing work

The six tools do not send, retry, release or abandon work. They omit message bodies, task snapshots and key material.

Keep the source in view

Each view shows when its data was captured. A saved snapshot contains only its recorded pages. An owner lock does not establish broker health.

Use text or the App

Clients without MCP Apps support receive the same text and JSON results. The App uses fixed read-only tool calls and loads no external resources.

ToolWhat you can inspect
node_statusEndpoint identity, storage, quarantine and recorded counts.
list_operationsOperations, with state filters and bounded pages.
get_operationOne operation's recorded stages, publication attempts, response and task state.
inspect_endpointOutbox, dispatch, rejections, incidents and partition progress.
get_recovery_rehearsalA retained simulation report selected when the server starts.
get_implementation_replayExpected model states beside recorded implementation observations.

Follow one operation through its stages

The journey separates local admission, broker acknowledgement, remote recording and the protocol response. Missing evidence stays unknown. A response does not mean the task completed.

The task state is the last recorded observation. The diagram does not infer missing evidence or reconstruct a complete event history.

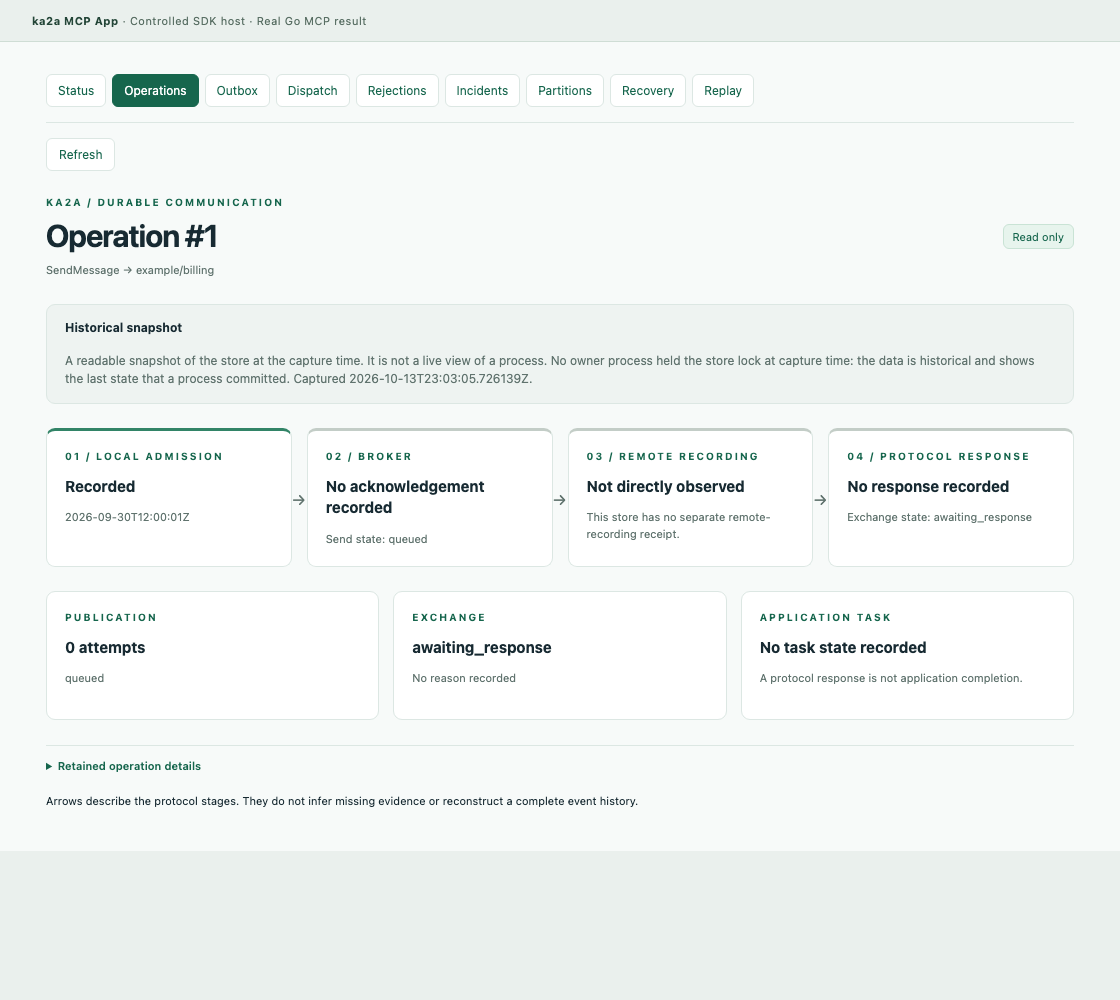

Operation 1 is admitted locally. The App shows no broker acknowledgement, no direct observation of remote recording, no response and no task state.
App 2 Synthetic demo data. Playwright capture in a local host built with the official MCP Apps SDK, not a third-party client. This operation is queued. Each stage states what the store records. Select the image for the full-size capture.

Review a recovery rehearsal

The CLI recovery simulator runs real store transitions on a private copy. Give its saved report to ka2a mcp with --recovery-report.

The App shows before and after states, refused actions and invariant checks. It reads the retained report without running or applying recovery.

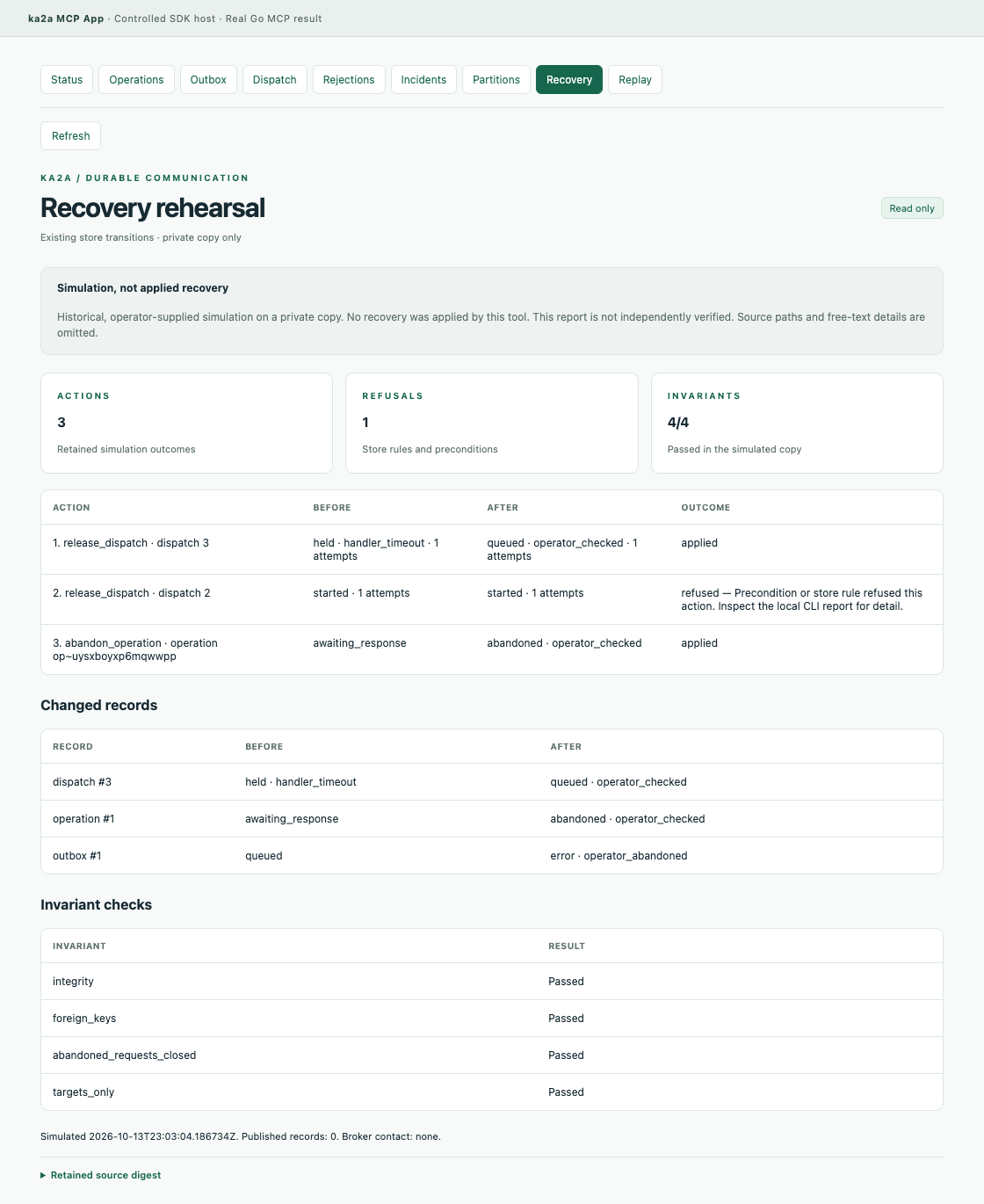

The recovery App compares three simulated actions: two applied to a private copy and one refused. Four invariant checks passed.
App 3 Synthetic demo data. Playwright capture in a local host built with the official MCP Apps SDK, not a third-party client. The operator supplied this historical simulation report. It is not independently verified. Select the image for the full-size capture.

Compare the model with the implementation

Quint is a language for executable models. Step through a saved run to compare its expected states with observations from the Go coordinator and SQLite.

The App highlights the first mismatch and shows the source hashes, code revision and limits. Agreement covers only the selected trace.

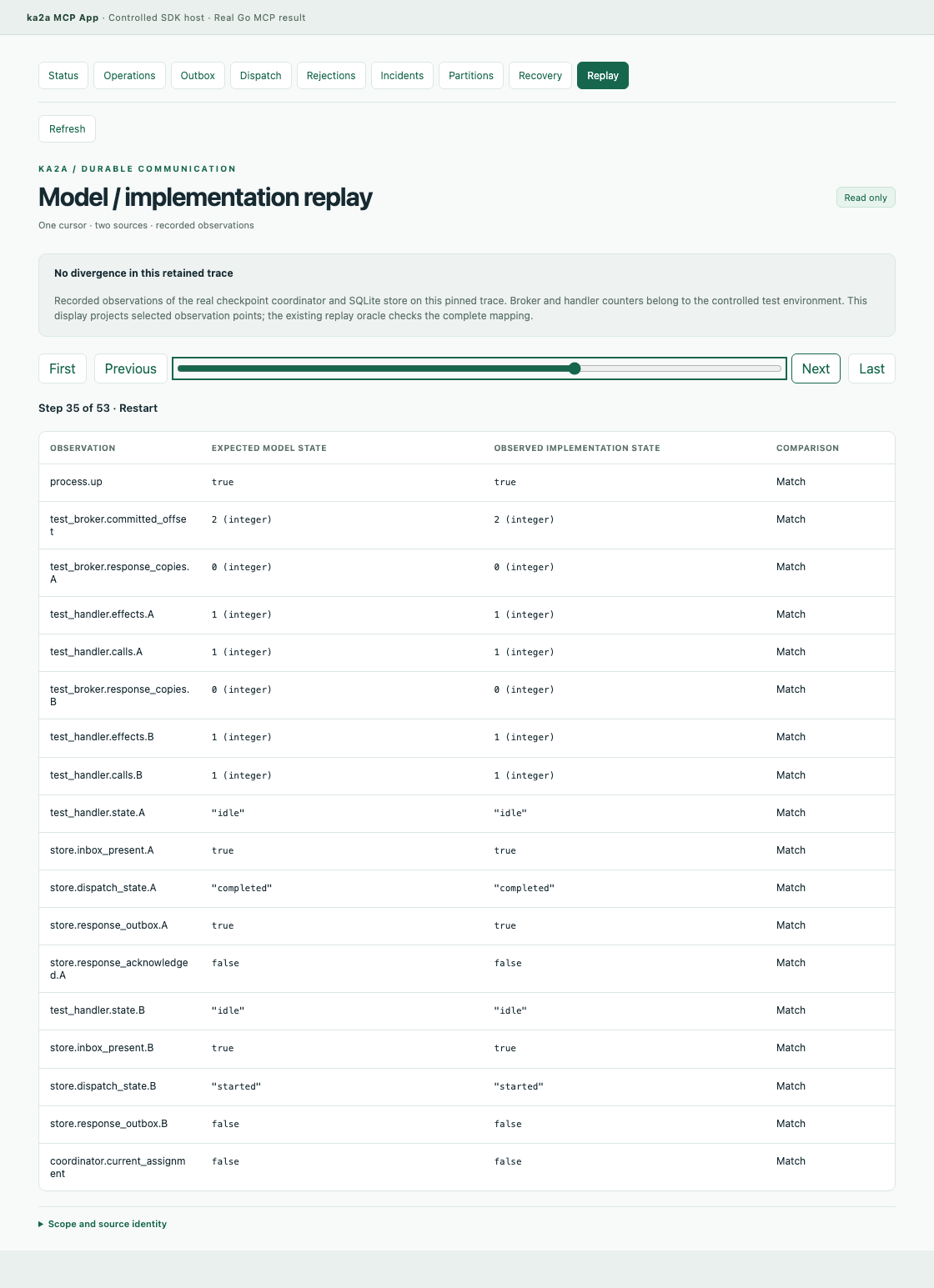

At step 35 of 53, the replay App compares expected model values with observed implementation values after a restart. Every displayed comparison matches.
App 4 Synthetic demo data. Playwright capture in a local host built with the official MCP Apps SDK, not a third-party client. This retained trace has no divergence. Broker and handler counters belong to the controlled test environment. Select the image for the full-size capture.

Saved results keep their limits. “Retained” means saved from an earlier run. The MCP tools never contact Kafka or execute recovery. Optional --live-status reads the running node's private status socket. A saved --snapshot keeps its original capture time and available pages.

Read the MCP guide for setup, examples and bounds. The operator documentation covers deployment, recovery, metrics, configuration and upgrades.

Commands that read state

ka2a doctor
Checks the store, the catalog, the signing key, the broker connection and the mailbox topic. It warns when the state directory is on tmpfs or overlay, because that state is lost at a reboot or with the container.
ka2a observe
Prints one consistent snapshot of the store.
ka2a operation show
Shows the stages of one operation with evidence.
ka2a snapshot export
Writes a ka2a.snapshot/1 file for a later review.
ka2a snapshot diff
Compares operation evidence and partition offsets in two saved captures, with explicit page coverage. Read the snapshot comparison runbook. A missing row in a partial capture stays unobserved.
ka2a topics verify
Compares the mailbox topic with the profile. It changes nothing.

Stable exit codes

CodeMeaning
0Success.
1The command failed. The message names the error code.
2Usage error: unknown command, flag or argument.
3The checks found problems.
4The command is not available in this build.
5A running node owns the state directory.
6A request is admitted, but its outcome is not known yet.

How it works

Four stages, with different evidence.

Local admission, broker acknowledgement, remote recording and a protocol response answer different questions. Task completion is a separate observation. Unknown outcomes remain unknown.

A request from planner to reviewer passes four recorded stages: locally queued, broker acknowledged, remote recorded and protocol response. planner demo.example Kafka mailbox topic of reviewer reviewer demo.example 1 2 3 4 locally_queued outbox row + frozen bytes broker_acknowledged acks from all in-sync replicas remote_recorded verified, then journaled protocol_response
Figure 1 A request from planner to reviewer. Each numbered stage is a separate record in a store or on the broker.
  1. Locally queued

    One SQLite transaction stores the operation, its ID and the exact record bytes. Only then does publication start.

  2. Broker acknowledged

    Kafka acknowledges the record with acks=all. A timeout gives unknown, never a failure.

  3. Remote recorded

    The receiver checks the signature, the catalog grant and the schema. It journals the request before it accounts the offset.

  4. Protocol response

    The handler result travels back as a signed record. A response ends the exchange; it does not mean the task completed.

Examples

From a Go handler to a terminal session

The Go listings compile against the public API of the reviewed revision. The terminal sessions record runs from 2026-10-10 against a local single-broker Kafka with two synthetic endpoints. They predate the MCP App migration. Their keys are demo keys that must never protect real data.

Go · pkg/ka2a

Embed a node that serves requests

Open takes exclusive ownership of the state directory and opens the store. Server registers one handler. Run runs restart recovery, checks the mailbox topic and starts the work. WaitReady returns when the node admits work, also before a broker answers.

  • The handler receives the verified principal, never a claimed one.
  • Status tells whether a broker answered the mailbox check, and the live broker state.
  • HoldOnAmbiguity holds a request for an operator when a crash leaves its effect unknown.
  • Unsupported operations answer with a typed A2A error.
reviewer/main.goGo
node, err := ka2a.Open(ctx, ka2a.Config{
	Endpoint:       ka2a.Endpoint{Domain: "demo.example", Name: "reviewer"},
	StateDir:       "/var/lib/ka2a/reviewer",
	CatalogFile:    "/etc/ka2a/catalog.json",
	SigningKeyFile: "/etc/ka2a/reviewer.key.json",
	Kafka: ka2a.Kafka{
		Brokers: []string{"kafka-1.demo.example:9093"},
		TLS:     &tls.Config{MinVersion: tls.VersionTLS13},
	},
})
if err != nil {
	log.Fatal(err)
}
defer func() { _ = node.Close(ctx) }()

// The handler gets the verified principal and a stable operation ID.
handler := ka2a.HandlerFunc(func(ctx context.Context, inv *ka2a.Invocation) (ka2a.Result, error) {
	if _, ok := inv.Request.SendMessage(); !ok {
		return ka2a.ErrorResult(a2a.ErrUnsupportedOperation), nil
	}
	log.Printf("request %s from %s", inv.OperationID, inv.Principal)
	return ka2a.TaskResult(&a2a.Task{
		ID:        a2a.TaskID("review-" + inv.OperationID),
		ContextID: "release-notes",
		Status:    a2a.TaskStatus{State: a2a.TaskStateCompleted},
	}), nil
})
err = node.Server(handler, ka2a.HandlerOptions{RecoveryClass: ka2a.HoldOnAmbiguity})
if err != nil {
	log.Fatal(err)
}
go func() { _ = node.Run(ctx) }()
if err := node.WaitReady(ctx); err != nil {
	log.Fatal(err)
}
Listing 1 A node of the endpoint reviewer with one handler.

Go · pkg/ka2a

Send a message and wait for the answer

SendMessage returns after the request is durable. Wait returns the correlated response, or ErrUnknownOutcome when no answer arrived in time.

  • An unknown outcome is not a failure. The request stays admitted and can still complete.
  • A retry with the same operation ID returns the original operation.
  • An A2A error from the peer is a response, not a transport failure.
planner/send.goGo
// Keep the operation ID with the intent. After a crash, the same ID
// returns the original operation instead of a second request.
operationID, err := ka2a.NewOperationID()
if err != nil {
	log.Fatal(err)
}
operation, err := node.Client().SendMessage(ctx,
	ka2a.Endpoint{Domain: "demo.example", Name: "reviewer"},
	&a2a.SendMessageRequest{Message: &a2a.Message{
		ID:    "msg-1",
		Role:  a2a.MessageRoleUser,
		Parts: a2a.ContentParts{a2a.NewTextPart("Draft release notes for v0.4")},
	}},
	ka2a.SubmitOptions{OperationID: operationID})
if err != nil {
	log.Fatal(err) // Nothing was queued.
}
response, err := operation.Wait(ctx)
switch {
case errors.Is(err, ka2a.ErrUnknownOutcome):
	// Not a failure: the request stays admitted. Look it up later.
	status, _ := operation.Status(ctx)
	log.Printf("still %s after %d attempts", status.Exchange, status.Send.Attempts)
case err != nil:
	log.Fatal(err)
case response.IsError():
	log.Printf("the peer answered with an error: %v", response.ErrorObject().A2AError())
default:
	result, _ := response.SendMessageResult()
	log.Printf("result: %T", result)
}
Listing 2 The client side: send, wait and handle each kind of result.

Configuration · ka2a.catalog.v1

Declare who may talk to whom

A static catalog lists the endpoints, their public keys and the operations that each source may call on each destination. The runtime never discovers peers by itself.

  • Strict JSON: unknown members, duplicate keys and trailing data fail.
  • The catalog digest becomes a configuration version in the store.
  • The mailbox topic name comes from a hash of the endpoint.
catalog.jsonSynthetic
{
  "format": "ka2a.catalog.v1",
  "mailbox": { "prefix": "ka2a", "rule": "sha256-v1" },
  "endpoints": [
    { "domain": "demo.example", "endpoint": "planner" },
    { "domain": "demo.example", "endpoint": "reviewer" }
  ],
  "keys": [
    {
      "key_id": "planner-2026-09",
      "algorithm": "ed25519",
      "public_key": "fqOnxXXHZaAEqupZK8jtSjpGZNv536-yffmbJQIvmPw",
      "domain": "demo.example",
      "endpoint": "planner",
      "not_before": "2026-09-01T00:00:00Z"
    },
    {
      "key_id": "reviewer-2026-09",
      "algorithm": "ed25519",
      "public_key": "BP6231K7kz18wX9sPQf2SkgOrgo6h2PaoiHK3z9qHAE",
      "domain": "demo.example",
      "endpoint": "reviewer",
      "not_before": "2026-09-01T00:00:00Z"
    }
  ],
  "grants": [
    {
      "source": { "domain": "demo.example", "endpoint": "planner" },
      "destination": { "domain": "demo.example", "endpoint": "reviewer" },
      "operations": ["SendMessage", "GetTask", "ListTasks", "CancelTask"]
    },
    {
      "source": { "domain": "demo.example", "endpoint": "reviewer" },
      "destination": { "domain": "demo.example", "endpoint": "planner" },
      "operations": ["SendMessage"]
    }
  ]
}
Listing 3 The catalog of the two demo endpoints. The keys are non-production demo keys.

CLI · ka2a init, topics, doctor

Set up an endpoint and check it

init creates the store and records the catalog. topics provision creates the mailbox topic and never changes an existing one. doctor reports each check as ok, warning, problem or unverified.

  • The runtime never creates or changes a topic. Provisioning is an explicit step.
  • Doctor never reports a setting as verified without a value from the broker.
  • The development profile says clearly what it does not prove.
terminalReal run · synthetic endpoints
$ ka2a init --state-dir planner --domain demo.example --endpoint planner \
    --catalog catalog.json --signing-key planner.key.json
Created the store of demo.example/planner in /srv/ka2a-demo/planner.
Node ID       5dd99815-c260-407e-a91b-245044ba773e
Generation    7b4f9949-a0a5-4ab2-9326-7aefb3b67867
Epoch         1
Catalog       sha256:536ccf39…87cbef45, configuration version 1
Mailbox topic ka2a.v1.mailbox.c5b7df51…6c16230e
Signing key   planner-2026-09, valid at 2026-10-10 01:47:11Z
Next: provision the mailbox topic with 'ka2a topics provision', then check the setup with 'ka2a doctor'.

$ ka2a topics provision --brokers 127.0.0.1:39192 --catalog catalog.json \
    --state-dir planner --profile development
Topic ka2a.v1.mailbox.c5b7df51…6c16230e was created. Profile development.
STATUS  CHECK                                  EXPECTED            ACTUAL     DETAIL
ok      broker.topic_exists                    true                true       Verified from the broker metadata.
ok      broker.partitions                      1                   1          Verified from the broker metadata.
ok      broker.replication_factor              1                   1          Verified from the broker metadata.
ok      broker.in_sync_replicas                >= 1                1          Verified from the broker metadata.
ok      broker.cleanup.policy                  delete              delete     Verified from the broker metadata.
ok      broker.retention.ms                    >= 691200000 or -1  691200000  Verified from the broker metadata.
ok      broker.max.message.bytes               >= 1065445          1065445    Verified from the broker metadata.
ok      broker.min.insync.replicas             >= 1                1          Verified from the broker metadata.
ok      broker.unclean.leader.election.enable  false               false      Verified from the broker metadata.
Result: verified.
Listing 4 Create the store and the mailbox topic of planner. An ellipsis (…) marks shortened digests.
terminalReal run · synthetic endpoints
$ ka2a doctor --state-dir planner --catalog catalog.json \
    --signing-key planner.key.json --brokers 127.0.0.1:39192 \
    --profile development
ka2a doctor: /srv/ka2a-demo/planner (checked at 2026-10-10 01:47:14Z)
STATUS   CHECK                                  DETAIL
…
ok       store.identity                         Endpoint demo.example/planner, node 5dd99815-…, generation 7b4f9949-…, epoch 1.
info     store.owner                            No owner process holds the store lock.
ok       store.quarantine                       No quarantine.
ok       store.restore                          No restore evidence.
ok       store.storage                          Retained 0 B of 1.0 GiB (the default budget; the owner can use another). File system: ext.
…
ok       store.held_work                        No held or unknown work.
…
ok       catalog.load                           Strict ka2a.catalog.v1 with 2 endpoints; digest sha256:536ccf39…87cbef45.
ok       catalog.endpoint                       The catalog lists demo.example/planner with mailbox topic ka2a.v1.mailbox.c5b7df51…6c16230e.
ok       catalog.configuration                  The catalog is configuration version 1.
ok       signing_key                            Key planner-2026-09 signs for demo.example/planner, is private (mode 0600) and is valid at 2026-10-10 01:47:14Z.
warning  broker.profile                         Development profile: it does not demonstrate broker-loss durability.
warning  broker.security                        The broker connection has no TLS. Use plaintext only for a local development broker.
info     assumption.producer.acks               The producer requests acknowledgements from all in-sync replicas (acks=all). ka2a fixes this client setting.
…
ok       broker.topic_exists                    Verified from the broker metadata. (expected true, actual true)
ok       broker.partitions                      Verified from the broker metadata. (expected 1, actual 1)
ok       broker.replication_factor              Verified from the broker metadata. (expected 1, actual 1)
…
Result: ok. 0 problems, 2 warnings, 0 unverified.
Listing 5 Check the setup. An ellipsis (…) marks shortened identifiers and digests, and cut rows.

CLI · ka2a send, operation show

Send from the command line and follow the stages

The command line has no application handler, but it can send. Here the reviewer runs the handler of Listing 1. operation show then reads the store and prints each stage with its evidence.

  • Identifiers are pseudonyms by default. --raw-ids shows the raw values.
  • Bodies appear only with --show-result.
  • The task state is the state that the response carried. The peer owns the task.
terminalReal run · synthetic endpoints
$ ka2a send --state-dir planner --catalog catalog.json \
    --signing-key planner.key.json --brokers 127.0.0.1:39192 \
    --allow-plaintext --profile development --peer demo.example/reviewer \
    --operation-id 6f1c2a9e-4b7d-4c3e-9a51-2d8e7f0b3c14 \
    --text "Draft release notes for v0.4" --show-result
SendMessage to demo.example/reviewer: result.
Operation  op~cc2uv7szj6vwiuhp (created)
STAGE                STATE
locally_queued       yes
broker_acknowledged  yes
remote_recorded      yes
protocol_response    responded
application_task     TASK_STATE_COMPLETED
Task       task~nrzbbqatbruo4zcz, state TASK_STATE_COMPLETED, context ctx~ytbx7nlpownxbf32, 0 history messages, 0 artifacts
Result document:
{"id":"review-6f1c2a9e","contextId":"release-notes","status":{"message":{"messageId":"01a1237e-4d30-71fb-8a11-80f75527131b","parts":[{"text":"Reviewed \"Draft release notes for v0.4\": 2 notes, no blocking findings."}],"role":"ROLE_AGENT"},"state":"TASK_STATE_COMPLETED"}}
Identifiers: pseudonyms keyed for this output only; --raw-ids shows raw identifiers.
Listing 6 One request with its result document.
terminalReal run · synthetic endpoints
$ ka2a operation show \
    --state-dir planner 6f1c2a9e-4b7d-4c3e-9a51-2d8e7f0b3c14
Operation op~blytuvhlphldqos7 (SendMessage) to demo.example/reviewer, local sequence 1.
Read from /srv/ka2a-demo/planner at 2026-10-10 01:47:22Z. Historical: no owner process held the store lock at capture time. The data shows the last state that a process committed.
Identifiers: pseudonyms keyed for this snapshot only. Bodies are never shown.

STAGE                STATE                 EVIDENCE
locally_queued       yes                   Admitted to the local outbox at 2026-10-10 01:47:21Z.
broker_acknowledged  yes                   Kafka acknowledged partition 0 offset 0 at 2026-10-10 01:47:22Z.
remote_recorded      yes                   A response from demo.example/reviewer arrived at 2026-10-10 01:47:22Z.
protocol_response    responded             Outcome result. A response ends the exchange; it does not show that the task completed.
application_task     TASK_STATE_COMPLETED  The state that the response carried. The peer owns the task; this is not a live state.

Send         broker_ack, 1 attempts, since 2026-10-10 01:47:22Z
Exchange     responded since 2026-10-10 01:47:22Z
Response     result from demo.example/reviewer (key reviewer-2026-09), event ev~c3ad3muphzdoauw7, received 2026-10-10 01:47:22Z
Task         TASK_STATE_COMPLETED, task task~tzztalv7yxrt7al3, context ctx~5qcpesto2efhjf4c (observed in the response; the peer owns the task)
Times        created 2026-10-10 01:47:21Z, admitted 2026-10-10 01:47:21Z, expires 2026-10-11 01:47:21Z, deadline none
Recovery     hold_on_ambiguity; request event ev~jf36g7p2geu3xaxx
Listing 7 The recorded stages of the same operation.

CLI · unknown outcomes

When the peer is away

An unanswered request is not lost and not failed. ka2a send exits with 6: the outcome is not known yet. The same request with the same operation ID later returns the original operation and its response.

  • A retry reuses the frozen record. It never signs a new request under the old ID.
  • A changed request under a used ID is an identity conflict.
  • Exit codes are stable, so scripts can react to each case.
terminalReal run · synthetic endpoints
# The reviewer is offline. Wait five seconds, then stop waiting.
$ ka2a send … --peer demo.example/reviewer \
    --operation-id 2b7e9c41-8f3a-4d62-b0e5-7a1c9d4f6e28 \
    --text "Summarize incident 311" --wait 5s
SendMessage to demo.example/reviewer: pending.
Operation  op~dhhrl2p3ua26fmzs (created)
STAGE                STATE
locally_queued       yes
broker_acknowledged  yes
remote_recorded      unknown
protocol_response    awaiting_response
application_task     none
No response yet. The request stays admitted and can still complete; a later start of the node records the response.
Identifiers: pseudonyms keyed for this output only; --raw-ids shows raw identifiers.
# exit status 6: the outcome is not known yet. It is not a failure.

# The reviewer is back. Send the same request with the same operation ID.
$ ka2a send … --peer demo.example/reviewer \
    --operation-id 2b7e9c41-8f3a-4d62-b0e5-7a1c9d4f6e28 \
    --text "Summarize incident 311" --wait 20s
SendMessage to demo.example/reviewer: result.
Operation  op~fkecc43xvs47jnnq (the existing operation of this key)
STAGE                STATE
locally_queued       yes
broker_acknowledged  yes
remote_recorded      yes
protocol_response    responded
application_task     TASK_STATE_COMPLETED
Task       task~szv3az2vymu62u46, state TASK_STATE_COMPLETED, context ctx~loqhaxqrw5n7qimq, 0 history messages, 0 artifacts
Identifiers: pseudonyms keyed for this output only; --raw-ids shows raw identifiers.
# exit status 0. The reviewer ran the request once.

# The same operation ID with a different request is refused.
$ ka2a send … --peer demo.example/reviewer \
    --operation-id 2b7e9c41-8f3a-4d62-b0e5-7a1c9d4f6e28 \
    --text "Summarize incident 312" --wait 5s
ka2a send: identity_conflict: the operation ID is already used by another request (the request fingerprint differs)
# exit status 1
Listing 8 The reviewer is offline, then back. The ellipsis (…) stands for the connection flags of Listing 6.

Wire · KA2A-WIRE-1

What travels on the wire

Each request is one Kafka record in the CloudEvents binary mode. The value is canonical JSON (RFC 8785). The signature covers the topic, the key, the sorted headers and the value.

  • The record key is the operation ID, so retries land on the same key.
  • ce_ka2aexpires bounds how long a receiver accepts the record.
  • Frozen test vectors keep the byte format stable across releases.
testdata/wire/request.jsonFixture
# Frozen test vector "request" of KA2A-WIRE-1. NON-PRODUCTION fixture key.
topic    ka2a.v1.mailbox.ef118f190fbbb51fbf1c872b534476430cc1caf73ed676d1065bb16f697d50a8
key      0f010000-0000-4000-8000-00000000a001
headers  ce_dataschema   urn:sha256:673d5641e3a3d163271068fd6abdd570c8439659f8a91811c4b4a0ef4056bedc
         ce_id           0e010000-0000-4000-9000-00000000b001
         ce_ka2aa2a      1.0
         ce_ka2adomain   fixture.test
         ce_ka2aexpires  2026-10-01T12:00:00.000000Z
         ce_ka2akey      fixture-client-a-1
         ce_ka2aop       0f010000-0000-4000-8000-00000000a001
         ce_ka2asig      xG-guTuDp-Bs2bm1VgVXLfWu4Zm_qipqG6s-8OnkCv6eYZS_ablaU9vJ8im2n7f0oB3-zTmySN9D6lo0RkFBDg
         ce_ka2atarget   server-b
         ce_ka2awire     1
         ce_source       urn:ka2a:endpoint:fixture.test:client-a
         ce_specversion  1.0
         ce_time         2026-09-30T12:00:00.000000Z
         ce_type         io.ka2a.request.v1
         content-type    application/json
value    {"operation":"SendMessage","params":{"message":{"messageId":"msg-0001","parts":[{"text":"hello, server"}],"role":"ROLE_USER"}}}
Listing 9 The frozen test vector request. It is signed with a public, non-production fixture key.

CLI · ka2a observe

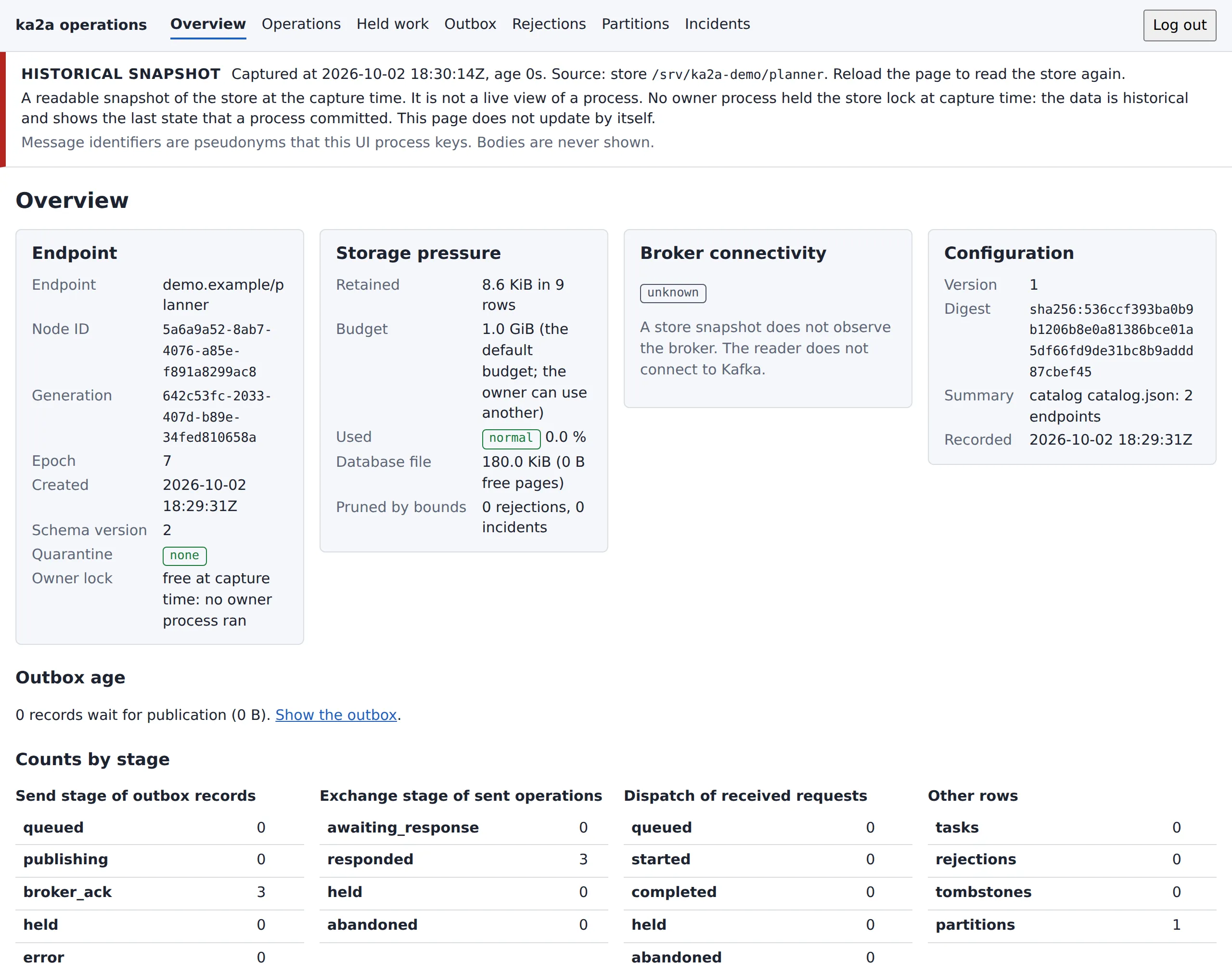

Inspect a store without touching it

observe opens the store read-only and prints one consistent snapshot. It never takes the owner lock, writes a row or moves a broker offset. --output json prints the ka2a.snapshot/1 document.

  • The snapshot says if an owner process held the lock. Without one, the data is historical.
  • A store snapshot does not observe the broker, and it says so.
terminalReal run · synthetic endpoints
$ ka2a observe --state-dir planner
Snapshot of /srv/ka2a-demo/planner, captured at 2026-10-10 01:47:41Z.
Historical: no owner process held the store lock at capture time. The data shows the last state that a process committed.
Identifiers: pseudonyms keyed for this snapshot only. Bodies are never shown.

Endpoint     demo.example/planner
Node ID      5dd99815-c260-407e-a91b-245044ba773e
Generation   7b4f9949-a0a5-4ab2-9326-7aefb3b67867
Epoch        6
Quarantine   none
Storage      8.6 KiB of 1.0 GiB (default budget), normal, 0.0 %
Broker       unknown: A store snapshot does not observe the broker. The reader does not connect to Kafka.
Config       version 1, sha256:536ccf393ba0b9b1206b8e0a81386bce01a5df66fd9de31bc8b9addd87cbef45, catalog catalog.json: 2 endpoints
Outbox       0 records wait for publication

Counts
  outbox     queued 0, publishing 0, broker_ack 3, held 0, error 0
  exchanges  awaiting_response 0, responded 3, held 0, abandoned 0
  dispatch   queued 0, started 0, completed 0, held 0, abandoned 0
  other      tasks 0, rejections 0, tombstones 0, partitions 1 (committed ahead 0)

Operations (newest first; all states; 3 shown)
SEQ  OPERATION            NAME         TARGET                 SEND        EXCHANGE   TASK
3    op~gbrhsq5jxvayrjro  SendMessage  demo.example/reviewer  broker_ack  responded  TASK_STATE_COMPLETED
2    op~rmw4vpmdwcdll44f  ListTasks    demo.example/reviewer  broker_ack  responded  none
1    op~fdv2ilkbveuabymb  SendMessage  demo.example/reviewer  broker_ack  responded  TASK_STATE_COMPLETED

Dispatch (oldest first; states started, held; 0 shown)
  none

Outbox records (oldest first; states queued, publishing, held, error; 0 shown)
  none

Rejections (newest first; 0 shown)
  none

Partition progress (topic partition; 1 shown)
TOPIC                                                                             PARTITION  ACCOUNTED_NEXT  COMMITTED_NEXT  UPDATED
ka2a.v1.mailbox.c5b7df518114d8dd3f3c8c2efd196681e22d370262550787a019dccc6c16230e  0          3               3               2026-10-10 01:47:38Z

Incidents (newest first; 0 shown)
  none
Listing 10 A snapshot of planner. The partition progress shows the accounted and the committed offsets.

CLI · ka2a run --metrics-listen

Scrape metrics that hold no secrets

ka2a run can serve the node metrics in the Prometheus text format on a loopback address. Embedders mount the same exporter with Node.MetricsHandler.

  • Labels carry fixed states only, plus the configured domain and endpoint. No operation ID, context, body, key or broker address appears.
  • The broker state is live: reachable, unreachable or unknown.
  • A non-loopback address is a usage error before the node opens.
  • The last credential reload and the state of the catalog on disk are metrics too.
terminalReal run · synthetic endpoints
$ ka2a run --state-dir planner --catalog catalog.json \
    --signing-key planner.key.json --brokers 127.0.0.1:39192 \
    --allow-plaintext --profile development --metrics-listen 127.0.0.1:39501
ka2a run: metrics at http://127.0.0.1:39501/metrics
ka2a run: node demo.example/planner is ready on mailbox ka2a.v1.mailbox.c5b7df518114d8dd3f3c8c2efd196681e22d370262550787a019dccc6c16230e; press Ctrl-C to stop.

# In a second terminal: read the metrics.
$ curl -s http://127.0.0.1:39501/metrics
ka2a_node_info{domain="demo.example",endpoint="planner"} 1
ka2a_node_running 1
ka2a_node_ready 1
ka2a_node_closed 0
ka2a_quarantine_active 0
ka2a_status_observed_timestamp_seconds 1.791596868779e+09
ka2a_store_retained_bytes 8798
ka2a_store_budget_bytes 1.073741824e+09
ka2a_outbox_records{state="queued"} 0
ka2a_outbox_records{state="publishing"} 0
ka2a_outbox_records{state="held"} 0
ka2a_outbox_records{state="error"} 0
ka2a_outbox_oldest_queued_age_seconds 0
ka2a_exchanges{state="awaiting"} 0
ka2a_exchanges{state="held"} 0
ka2a_dispatch{state="queued"} 0
ka2a_dispatch{state="started"} 0
ka2a_dispatch{state="held"} 0
ka2a_tasks 0
ka2a_rejections 0
ka2a_mailbox_check{result="not_checked"} 0
ka2a_mailbox_check{result="verified"} 1
ka2a_mailbox_check{result="unverified"} 0
ka2a_mailbox_check{result="broker_unreachable"} 0
ka2a_mailbox_check{result="mismatch"} 0
ka2a_broker_state{state="unknown"} 0
ka2a_broker_state{state="reachable"} 1
ka2a_broker_state{state="unreachable"} 0
ka2a_broker_last_contact_timestamp_seconds 1.791596868346e+09
ka2a_broker_last_failure_timestamp_seconds 0
ka2a_credentials_last_reload{result="none"} 1
ka2a_credentials_last_reload{result="reloaded"} 0
ka2a_credentials_last_reload{result="refused"} 0
…
ka2a_catalog_disk{state="same"} 1
ka2a_catalog_disk{state="differs"} 0
ka2a_catalog_disk{state="refused"} 0
ka2a_submit_accepted_total 0
…
ka2a_publish_acknowledged_total 0
…
ka2a_publish_unknown_total 0
…
ka2a_requests_recorded_total 0
…
ka2a_checkpoint_commits_total 0
…
ka2a_observer_dropped_total 0
…
Listing 11 The live metrics of planner. The HELP and TYPE comment lines are left out, and an ellipsis (…) marks cut metric lines.

Publication

Every publish attempt has one of four outcomes

ka2a never reports a remote failure from a timeout. It classifies what the broker told it and acts on that class.

OutcomeWhat it meansWhat ka2a does
acknowledgedAll in-sync replicas acknowledged the record. Partition and offset are known.Records the broker stage with its offset and waits for the response.
rejectedThe record is not written, and the same bytes fail again. Examples: too large, not authorized.Marks the operation as an error with a stable reason code.
not_sentThe record did not leave the process, for example after a cancellation.Keeps it queued. A retry of the same bytes is safe.
unknownThe broker possibly wrote the record, for example after a timeout or a disconnect.Publishes the same frozen bytes again within the admission horizon. The receiver deduplicates.

Recovery

Crash anywhere. Restart. Know where you are.

The store is the source of truth for local work. Kafka offsets follow the store, never the other way round.

Restart republishes the same bytes

A crash after admission leaves the record in the outbox. The next start publishes the identical bytes. The receiver sees a duplicate and answers from its journal.

Ambiguous work is held, not guessed

A handler crash can leave an effect unknown. With HoldOnAmbiguity, ka2a holds the request for an operator. With IdempotentWithKey, it runs the handler again with the same key.

Checkpoints follow the store

A consumer commits only the contiguous prefix of records that the store accounted. An epoch fence stops a stale consumer from committing after a rebalance.

Restores are detected

A witness file and the store epoch detect a rolled-back state directory. The store then enters quarantine until an operator records a decision with ka2a quarantine release.

One owner per store

An owner lock keeps a second process out of a state directory. Read-only tools work beside the owner and never take the lock.

Bounded retention

Held, unknown and unpublished work is never removed automatically. Completed rows age out under an explicit storage budget.

Broker security

Secure the broker connection. Rotate credentials without a restart.

A node and the administrative commands share one set of TLS and SASL flags. A refused connection or a missing permission is a classified problem with a fixed hint, never a vague failure.

TLS, SASL and mutual TLS

ka2a connects over TLS with SASL SCRAM-SHA-512 or PLAIN, or with a client certificate (--tls-cert, --tls-key). The key file must be private (mode 0600). The node commands refuse an expired certificate before they contact a broker.

Classified refusals and denials

A refused or revoked handshake is tls_failed, a refused login is authentication_failed, and a missing ACL is authorization_failed with a scope such as topic_write or group_read. doctor and topics verify then exit with status 3.

The minimal ACLs, as a plan

ka2a topics acl-plan derives the minimal ACLs of a node from the catalog and prints the kafka-acls.sh commands. It never contacts a broker and never applies an ACL. An operator reviews and applies them.

Credential reload without a restart

SIGHUP makes ka2a run read the TLS and SASL files again. Embedders call Node.ReloadCredentials. Each bootstrap broker in --brokers gets a check with the new material before the node uses it. A refused reload keeps the previous material, and the node continues.

Catalog and signing key need a restart

A running node never adopts a changed catalog or signing key, because the catalog is the root of trust of work in flight. The node compares the catalog on disk with its running digest and shows same, differs or refused.

Keys and catalogs from the CLI

ka2a keys generate writes a new Ed25519 key file and prints only its public catalog entry. catalog validate classifies every finding, and catalog digest prints the digest that a node records. There is no command that edits a catalog.

Revocation lists for broker certificates

--tls-crl reads local revocation lists of the CAs in --tls-ca. Embedders use the same check through ka2a.ParseBrokerRevocationLists. Every certificate of the chain is checked. ka2a refuses a stale list and a list that is not complete, and a reload cannot remove the check. doctor warns when the next update of the lists is less than 24 hours away, and a metric gives that time. ka2a never fetches a list and does not use OCSP.

Broker CA rotation in two reloads

First reload a bundle of the old and the new CA. Then the brokers change their certificates. Then reload only the new CA. A real-broker test did these steps, and no exchange failed.

A refused login does not fail the work

When the broker refuses the SASL authentication of a produce, the request stays queued. After the reload of the correct password, the same request completes. A real-broker test shows this. With broker re-authentication on, open connections use the new password at their next re-authentication.

CLI · keys generate, catalog validate

Rotate a signing key and check the catalog

A key rotation changes two keys: the new key, and the end and the rotation link of the old key. The validator finds a catalog that adds the new key without the link.

  • A node accepts the first catalog, but two keys can sign for one endpoint at the same time. catalog validate reports this as a problem.
  • The commands need no broker and no store. They only read files, except keys generate, which writes the new key file and never replaces a file.
terminalReal run · synthetic endpoints
# Make the next key of planner. The private key never appears in the output.
$ ka2a keys generate --endpoint demo.example/planner \
    --key-id planner-2026-10 --not-before 2026-10-01T00:00:00Z \
    --out keys/planner-2026-10.key.json
Wrote the private signing key planner-2026-10 to /srv/ka2a-demo/keys/planner-2026-10.key.json (mode 0600). Add this entry to the "keys" list of the catalog:
{
  "key_id": "planner-2026-10",
  "algorithm": "ed25519",
  "public_key": "FtZjf8wpSvWv2RqhA1wyDN8d9fdSmNEJEVemrTnDb3U",
  "domain": "demo.example",
  "endpoint": "planner",
  "not_before": "2026-10-01T00:00:00Z"
}

# Not a ka2a command: a copy of the catalog gets the printed entry, without a rotation link.
$ ka2a catalog validate catalog-unlinked.json
Catalog /srv/ka2a-demo/catalog-unlinked.json: 2 endpoints, 3 keys, 2 grants; digest sha256:118f8d78…b536c7f5.
SEVERITY  CLASS                 PATH       FINDING
problem   overlapping_validity  $.keys[2]  keys planner-2026-09 and planner-2026-10 of demo.example/planner are valid at the same time, and neither replaces the other
1 problem, 0 warnings. A node accepts this catalog.
# exit status 3: the checks found a problem.

# A second copy also gives the old key an end (not_after) and a link to the new key (replaced_by).
$ ka2a catalog validate catalog-next.json
Catalog /srv/ka2a-demo/catalog-next.json: 2 endpoints, 3 keys, 2 grants; digest sha256:2eb8eb5c…eaada619.
0 problems, 0 warnings. A node accepts this catalog.

$ ka2a catalog digest catalog-next.json
sha256:2eb8eb5c65383b9b1a4d91cf887e54f6c6b7a713b4dd46d27f220570eaada619
Listing 12 Make the next key of planner and check two copies of the catalog. The catalog copies are made by a script, not by ka2a. An ellipsis (…) marks shortened digests.

CLI · topics acl-plan

Print the minimal broker ACLs of an endpoint

The plan gives Read on the own mailbox topic and on the consumer group, DescribeConfigs for the mailbox check, and Write on the mailbox of each peer. Responses go to the mailbox of the requester, so both directions need Write.

  • With mutual TLS, the principal comes from the client certificate. With SASL, it is User: and the user name.
  • A denied record is not sent again. After you add the ACL, send the request again. See the runbook Missing broker ACL.
terminalReal run · synthetic endpoints
$ ka2a topics acl-plan --catalog catalog.json --state-dir planner \
    --principal User:planner
Minimal ACLs of demo.example/planner for principal User:planner. ka2a prints them; it never applies them.
RESOURCE  NAME                               OPERATION        PURPOSE
topic     ka2a.v1.mailbox.c5b7df51…6c16230e  Read             consume the own mailbox (Read implies Describe)
topic     ka2a.v1.mailbox.c5b7df51…6c16230e  DescribeConfigs  check the mailbox against the declared profile
group     ka2a.owner.demo.example.planner    Read             join the consumer group and commit offsets (Read implies Describe)
topic     ka2a.v1.mailbox.79e3dba7…9c370722  Write            send requests and responses to demo.example/reviewer (Write implies Describe)

Commands (set BOOTSTRAP and ADMIN_CONFIG for an administrative principal):
kafka-acls.sh --bootstrap-server "$BOOTSTRAP" --command-config "$ADMIN_CONFIG" --add --allow-principal 'User:planner' --allow-host '*' --operation Read --topic 'ka2a.v1.mailbox.c5b7df51…6c16230e' --resource-pattern-type literal
…
Listing 13 The ACL plan of planner. An ellipsis (…) marks shortened topic names, and the table columns are aligned again after the cut. The last ellipsis marks three cut commands and the cut notes.

Broker checks. Integration tests exercise TLS with SASL and mutual TLS with ACLs. They rotate client certificates, SASL passwords and broker CAs during exchanges, and check broker-certificate revocation. Three-broker load profiles include leader loss. These runs use a shared host and do not measure production capacity. Read production deployment for the setup.

Built from specifications

Every behavior starts as a requirement

ka2a uses spec-driven development with OpenSpec. Each requirement has a stable ID and scenarios. Each scenario has a row in an acceptance ledger, and each automated row names the test that exercises it.

acceptance scenarios with automated tests
95 of 102
requirements with stable IDs
37
frozen wire test vectors
29
Go test functions in the module
646

These counts describe the reviewed revision in source-state.json. The acceptance ledgers connect each automated scenario to its tests.

One requirement, traced to its tests

specs/communication-contract/spec.mdRequirement
### Requirement: Frozen records and identity conflicts

Requirement-ID: KA2A-R1-004

After durable local acceptance the exact key, headers,
value, identity, signature and expiry SHALL be retained
across retries. Reusing an operation identity with a
changed logical request SHALL conflict rather than
mutate the original.

#### Scenario: Changed request
- GIVEN an operation key already names one
  target and request
- WHEN a caller submits different params
  with that key
- THEN it receives an identity-conflict error
  without replacing or sending the old operation
Listing 14 The requirement and one of its scenarios.
acceptance.mdLedger row
| ID | Requirement | Task | Scenario | Status |
| K-004-B | KA2A-R1-004 | K2 |
  Changed request | automated |

Evidence:
  Codec:   TestIdentityConflict
  Store:   TestSameOperationKeyWithChangedRequestConflicts
  Runtime: TestOperationKeyReuseAndConflict
           (same key and request returns the original
           without new bytes; changed body, class,
           horizon or operation conflicts; one record
           on the broker, one dispatch)
Listing 15 The ledger row of that scenario, with its evidence.
internal/runtime/sender_test.goTest
// Acceptance: K-004-B
// KH-08 (sender): a caller-supplied operation key names one logical
// request. The same request returns the original operation without new
// bytes; a changed request conflicts and neither replaces nor sends the
// original again.
func TestOperationKeyReuseAndConflict(t *testing.T) {
	leak.Check(t)
	ctx := testContext(t, time.Minute)
	f := newFixture(t, []string{"client", "server"})
	…
}
Listing 16 The runtime test that the row names.

A check script fails the build when a ledger row names a test that does not exist, or when a test names a ledger row that does not exist.

Real Kafka, real SQLite

Integration tests start a digest-pinned Apache Kafka image in Docker. They kill and restart processes and brokers, then check the stores and the offsets.

Properties and fuzzing

Rapid property tests drive random histories through the store and the checkpoint coordinator. Fuzz targets attack the codec, the catalog and the snapshot reader.

Boundaries as tests

Architecture tests keep internal types out of the public API and keep notarizing out of the dependency graph.

Release artifacts and qualification runs

Reproducible release artifacts

make release-artifacts builds one pure-Go binary per supported platform, with one SPDX 2.3 SBOM per binary, the notices, an evidence summary and SHA256SUMS. make release-check builds everything twice from git archive and compares each byte. The tooling publishes nothing and signs nothing.

65 minutes on three secured brokers

A soak ran for 65 minutes at 20 operations per second on three brokers with TLS and SCRAM-SHA-512 and the qualified durability profile. All 73,689 operations completed, the handler ran once for each operation, and retention reached a steady state. The host was shared and contended, so the numbers are not a capacity claim.

Model traces replayed against Go

18 traces of the Quint model of the receive path (1,058 steps) replay against the real checkpoint coordinator and the real SQLite store in make verify. This shows agreement on these traces only. It is not a proof, and it says nothing about concurrency or liveness.

Pinned fault histories. The evaluator refuses changed or shadowed pinned tests. The operator controls both the target and its pin, so these checks provide local regression evidence. Failure records remain in local files.

Operator guides

Put ka2a to work

Choose a guide for setup, configuration or recovery.

Configure a deployment

Set up brokers, credentials and endpoint stores with the deployment guide. Use the configuration reference for flags and environment variables.

Review catalog changes

The catalog comparison runbook shows how to compare endpoint routes, public keys and grants before changing a running endpoint.

Inspect and recover work

Connect an MCP host with the MCP guide. Compare saved snapshots to review changed observations, or follow the runbooks for delivery, backup and recovery.

Read the complete documentation index for command output, metrics, upgrades and security assumptions.

Also in this family

Notarizing: review a change with its evidence in view

A local-first MCP App for spec-driven review. Read OpenSpec changes, inspect evidence graphs, compare revisions and step through model/implementation replay. Scoped grants permit review commands in the App. Notarizing can receive evidence over ka2a, and it works without it.
